For Sale

Travelling

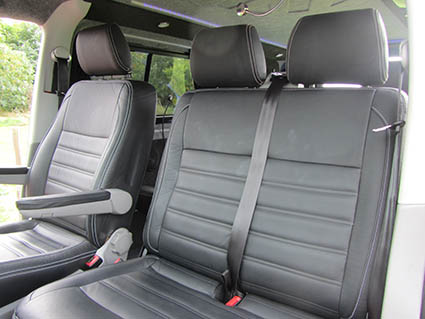

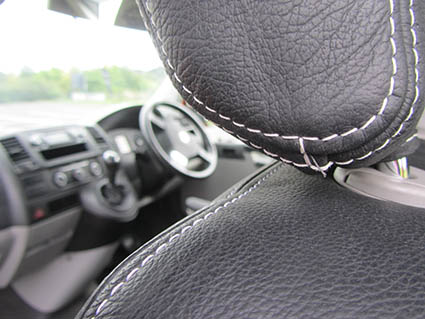

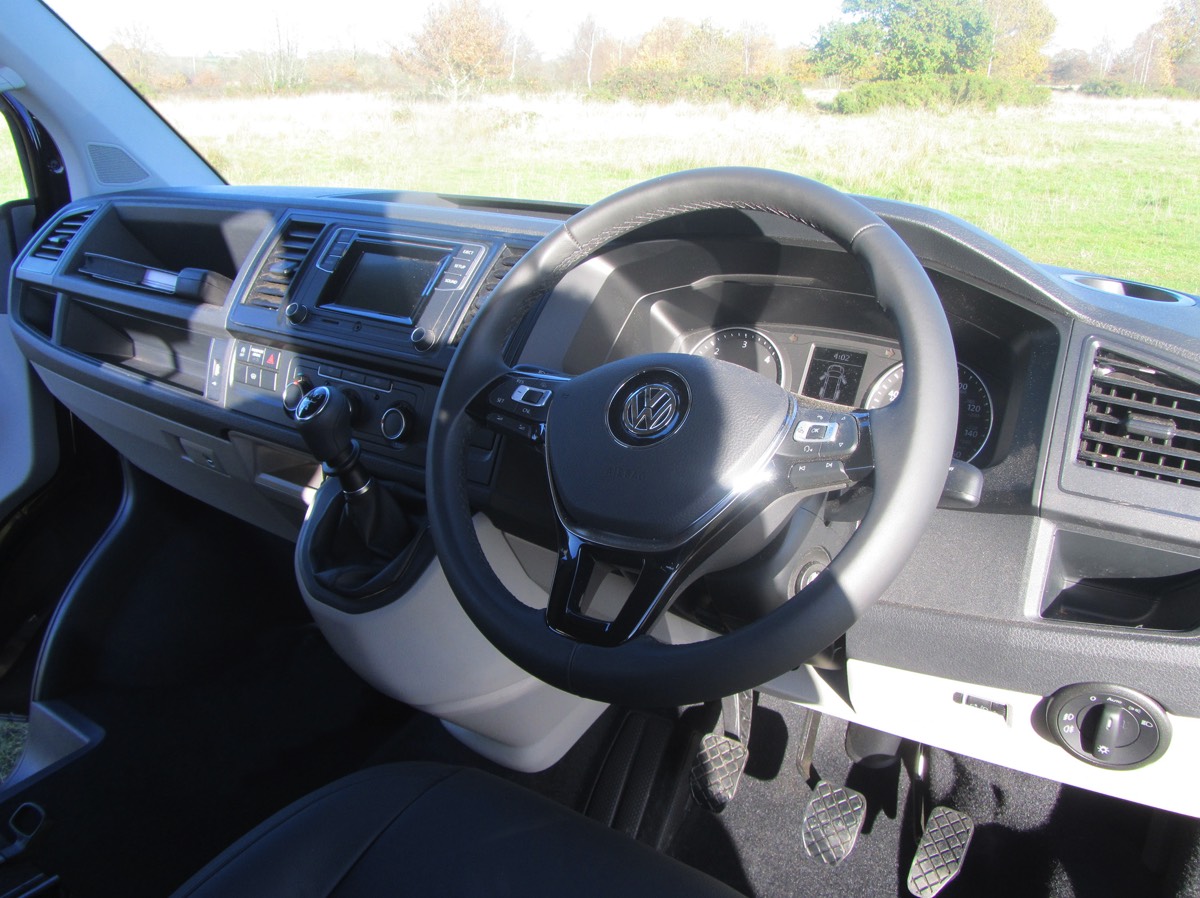

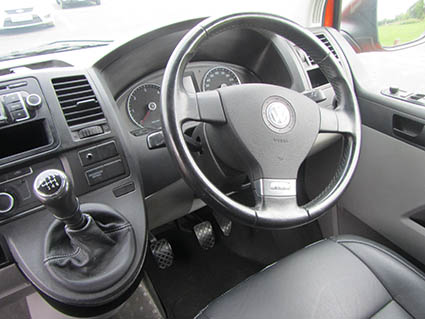

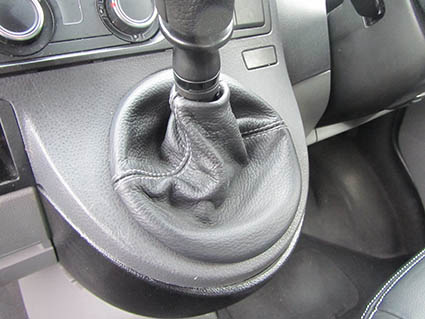

VW triple Kombi second row 150cm wide seat, upholstered in VW Sportline leather. Front double and driver’s seat with arm rests, steering wheel and gear lever gaiter also in full leather.

Luggage Space

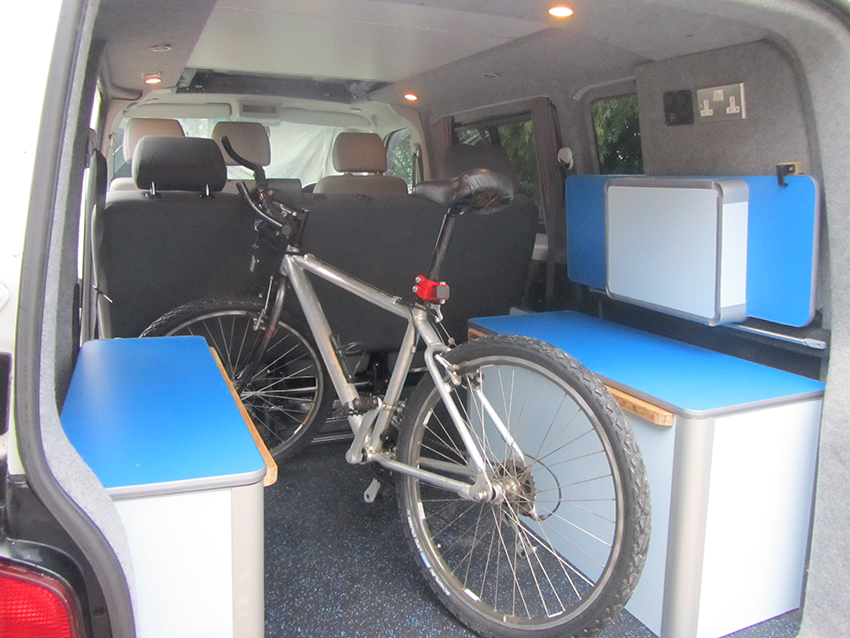

Huge 1730 litre load area in a safe position behind rear seat will swallow up a family’s bikes, holiday or sports equipment. Storage pod can be removed to give an even more space.

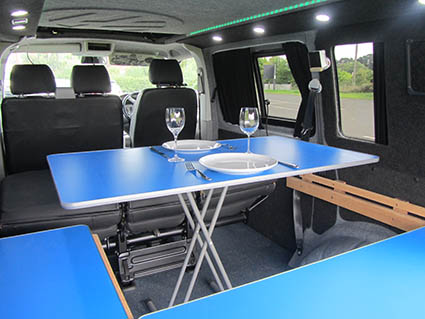

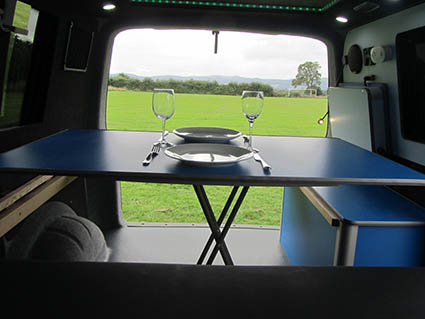

The front double seat can be folded flat in seconds for quick stops. A family of five can sit around the large folding table in the rear or take outside to enjoy the sun.

Sleeping

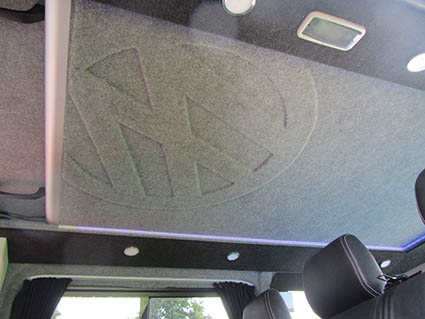

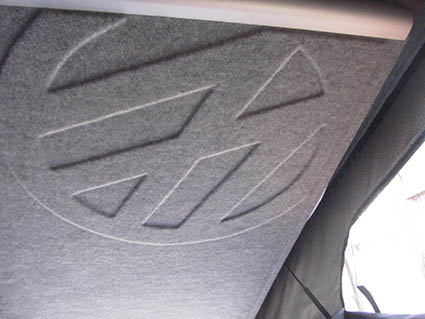

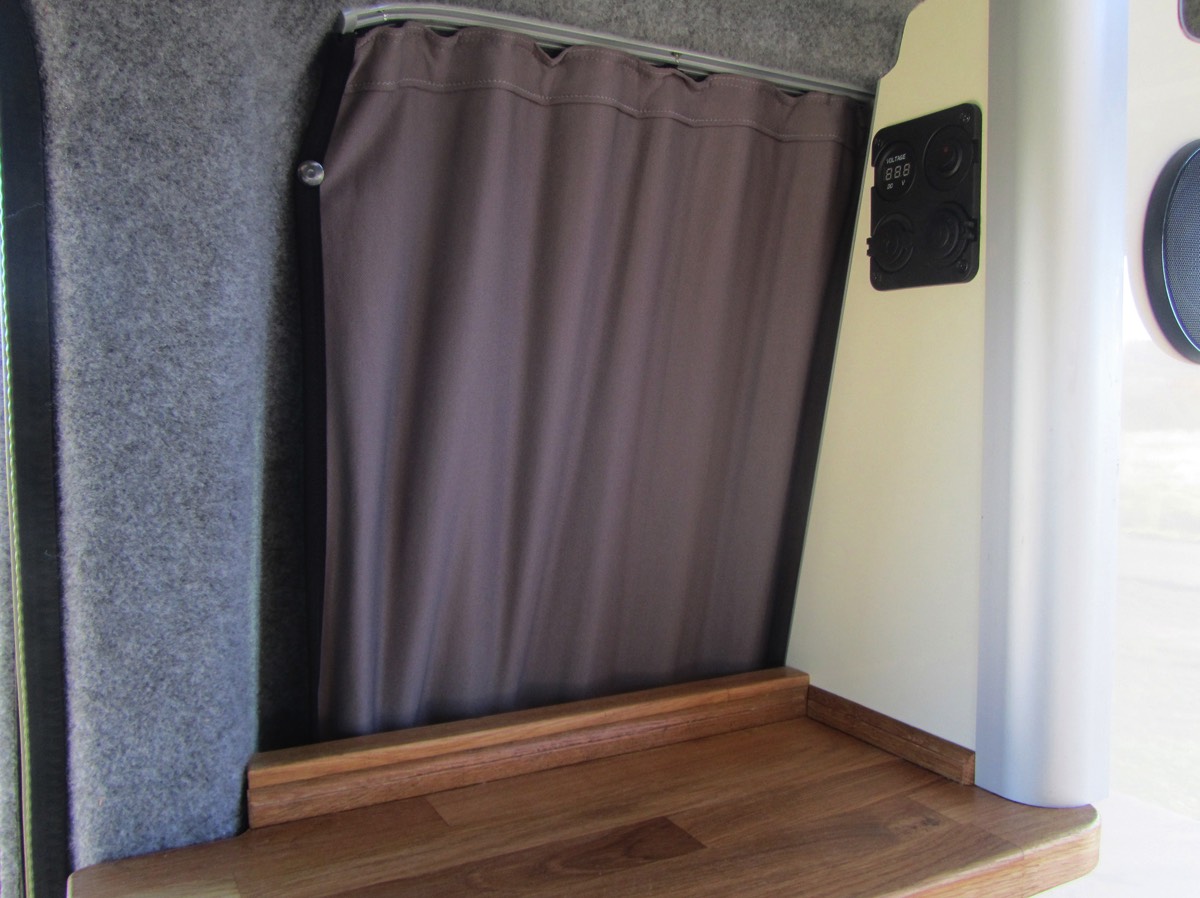

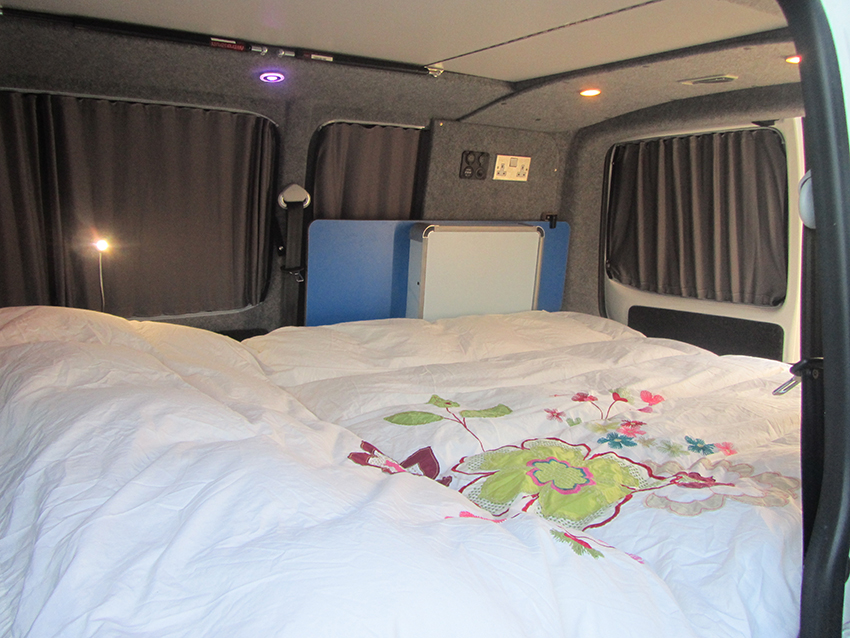

Capacity for 2 adults and 3 children. Huge bed base 145 x 188cm when rear seat is folded, roof bed featuring embossed VW logo on the underside 110 x 175cm, front seat transverse sleeping 56 x 140cm. Black out curtains.

Cooking

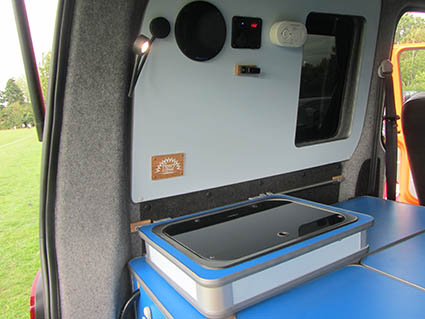

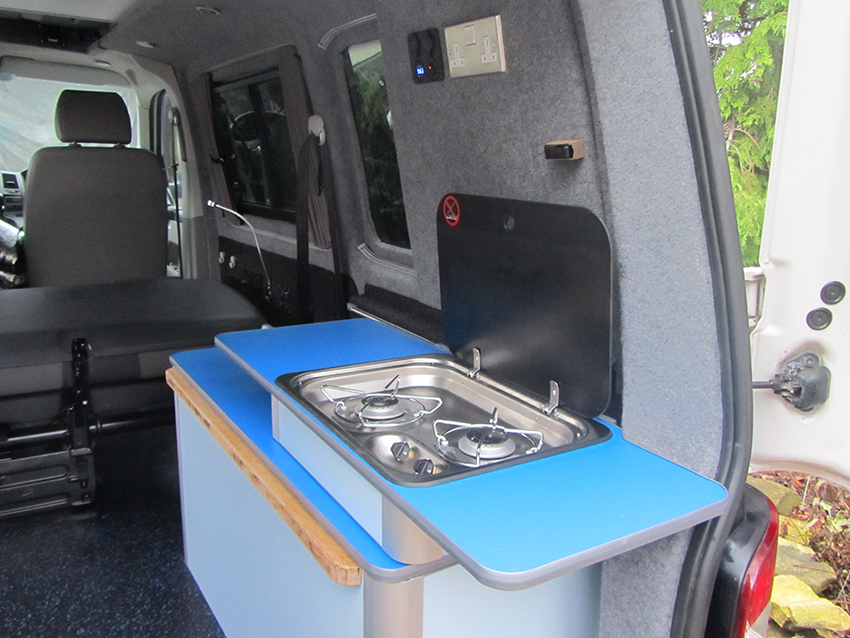

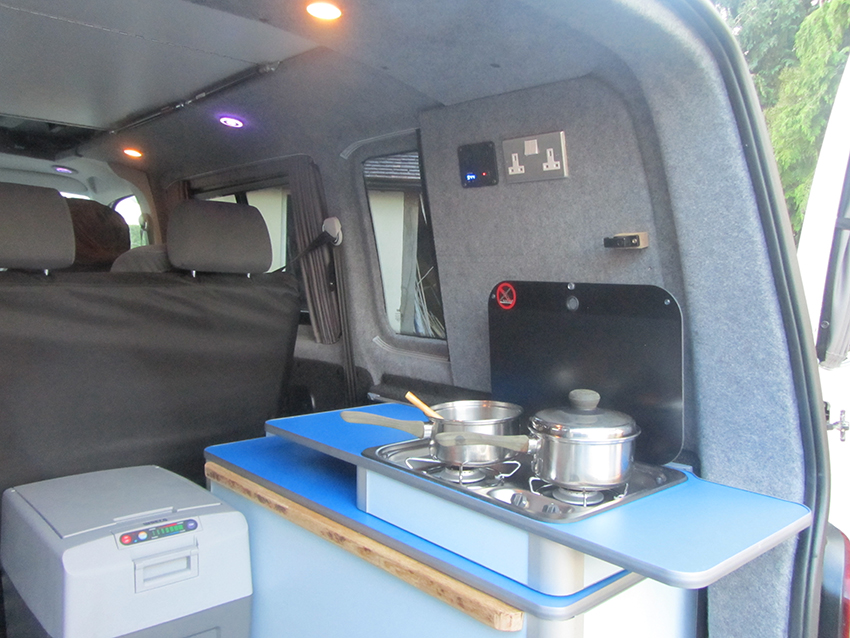

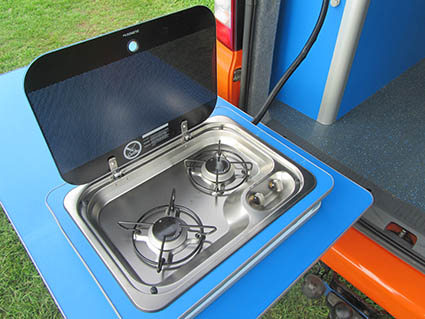

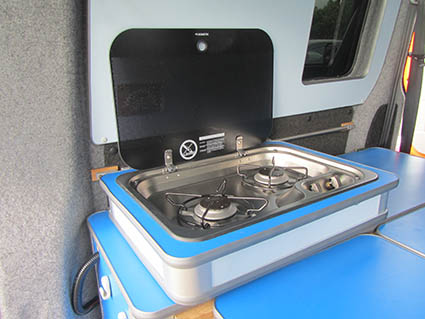

The Innovative detachable, folding Double Dometic hob is unique. It enables cooking inside or outside or can be removed entirely to save weight day to day. The gas locker incorporates a gas drop vent.

Furniture

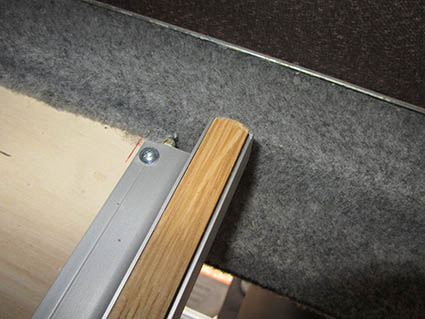

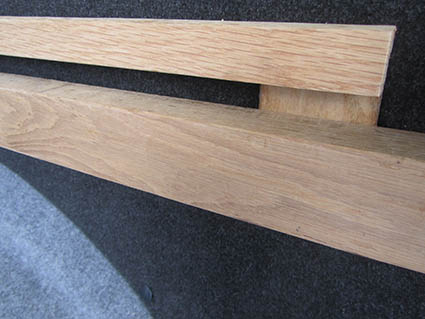

Blue and Powder blue Superva lightweight poplar plywood, corners are finished with anodised aluminium and all wood trim is in solid Oak. The rear of the van features a large removable stowage locker. The van is fitted with Altro Walkway ‘Nightfall’ safety flooring, which is attractive, easy to clean and very durable. There are multiple storage pockets in the centre and rear.

Electrics

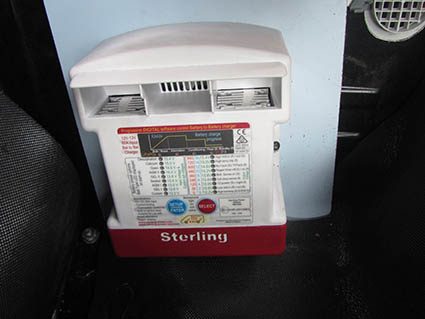

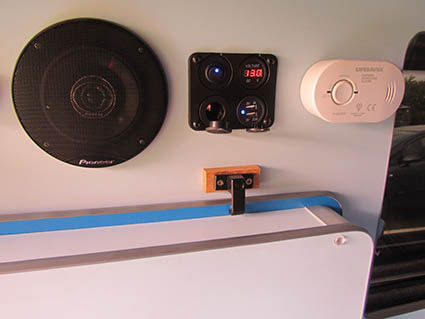

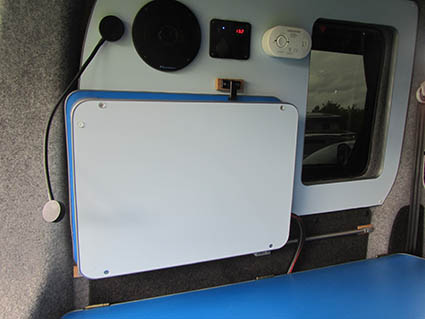

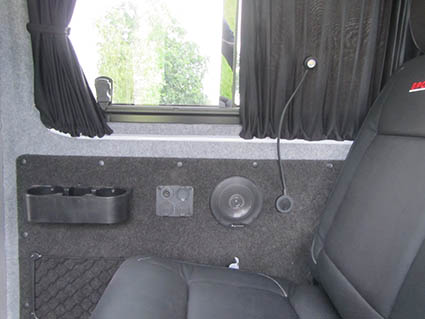

At the heart of this ‘off the grid’ system is a quality Sterling BB1260 12v Intelligent split charger & 100ah Hankook Calcium leisure battery. Smart charging allows greater voltages to be put into the leisure battery over shorter periods, ideal to run a high consumption coolbox without the need for 240v hook up. We have included bright led task lighting, a colour changing led ambient strip light, 3 map lights, 12v and USB sockets in the centre, and the rear of van includes a volt meter to monitor the battery condition. Carbon monoxide alarm.

Insulation
Each plywood panel is backed with dual layer metalized bubble sheet and 25mm kingspan is bonded onto bodywork internally.

Our signature
The van includes the Heart and Soul Campers’ logo in solid oak and hand drawn cartoon on the driver’s sun visor
Please note registration plate is not included

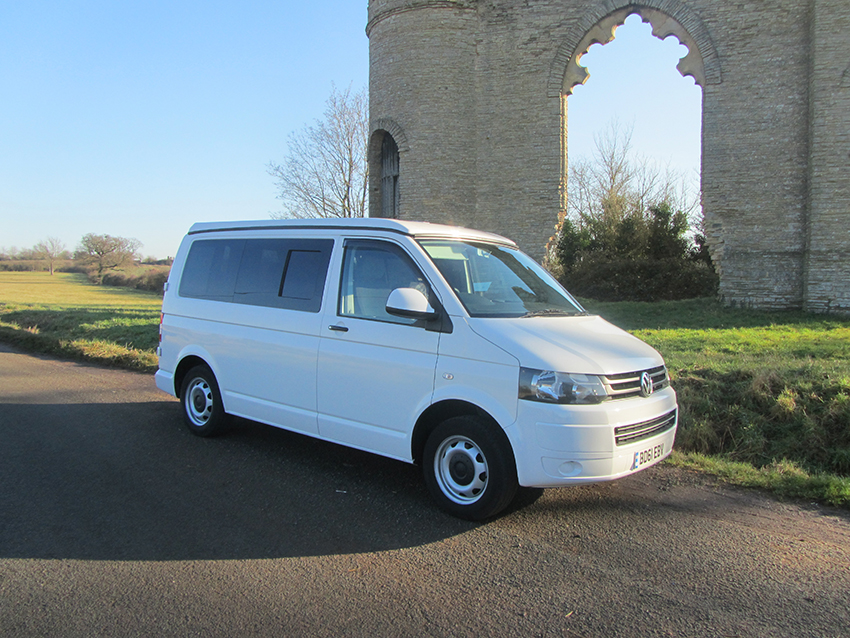

A unique, Innovative and high quality build featuring a range of natural and modern materials, CNC engineering and traditional hand craft skills by Heart and Soul Campers Ltd. This is their 2016 show vehicle.

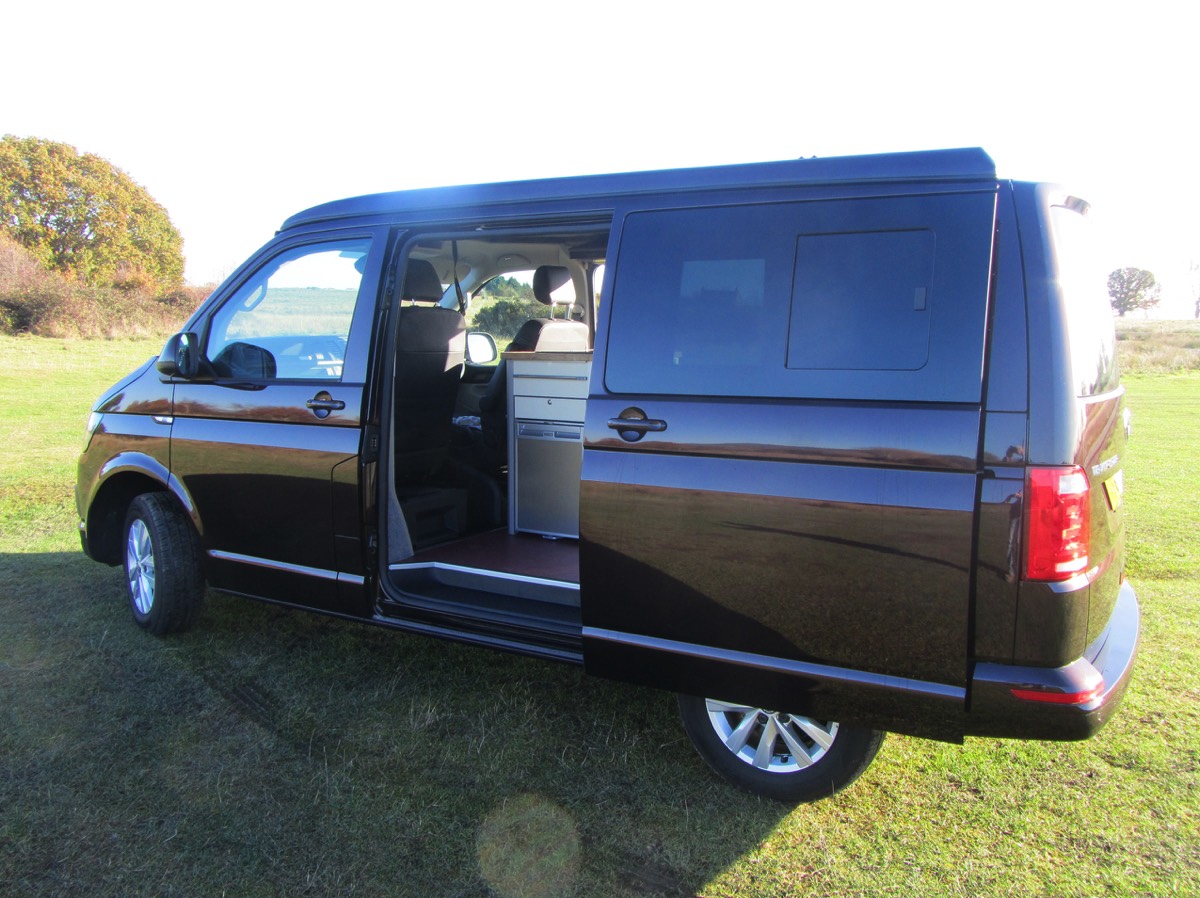

This is a rare specification with rear doors on each side offering convenience and a light airy feel.

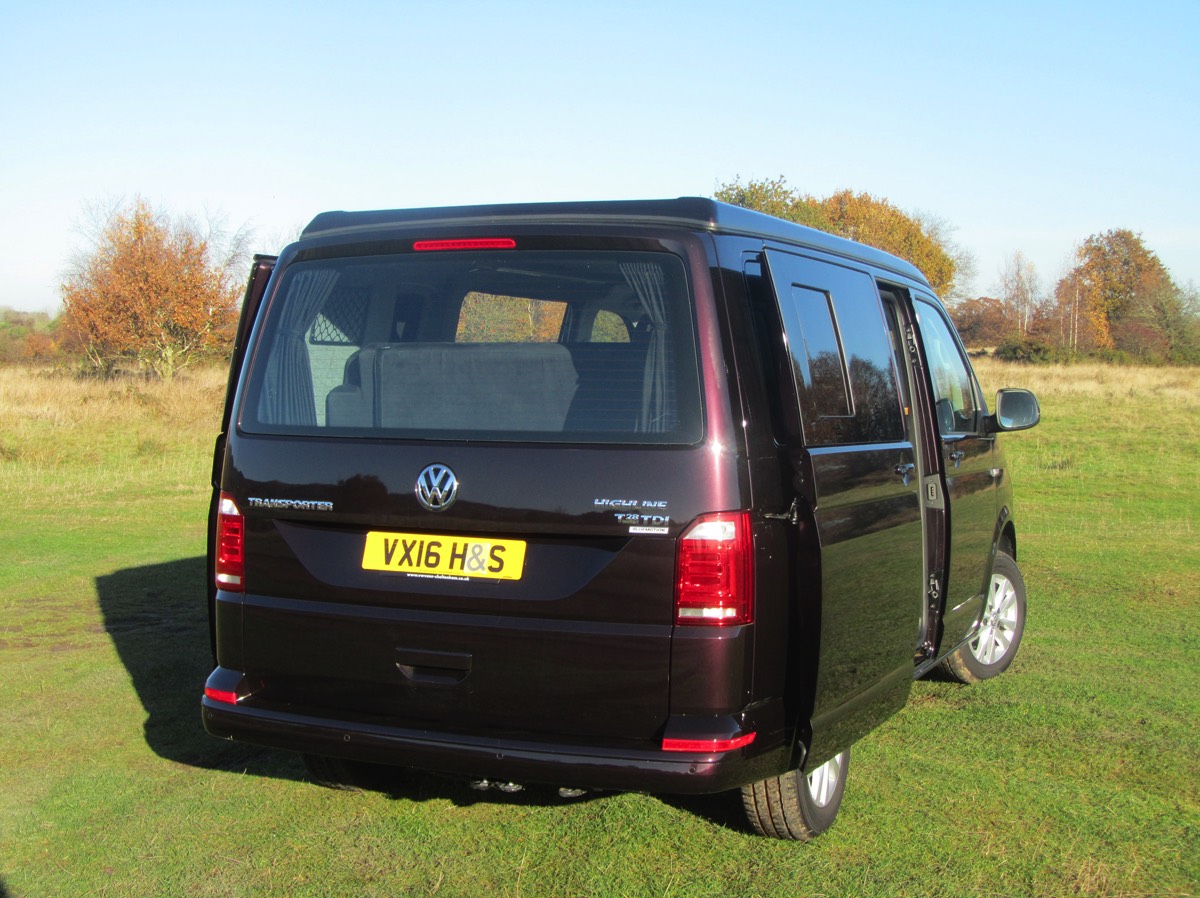

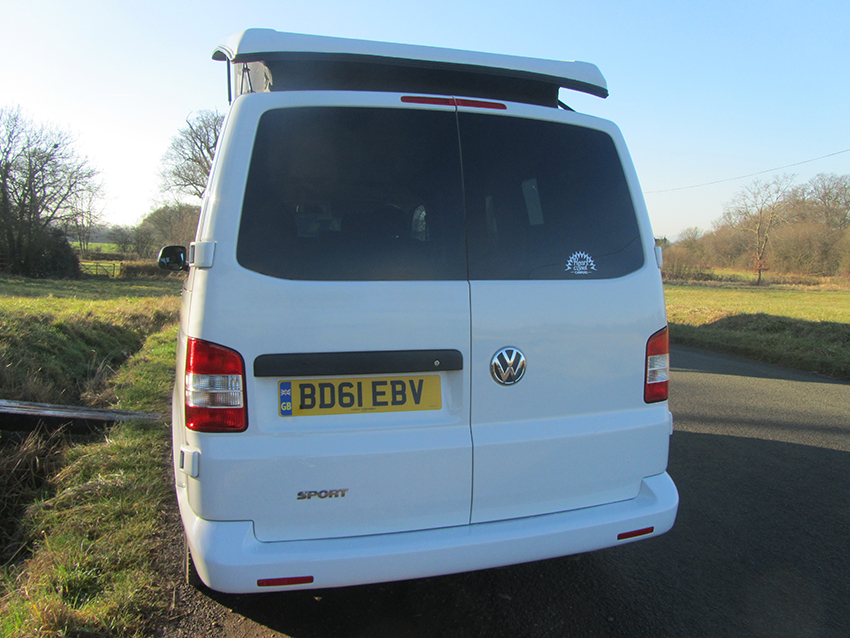

The tailgate offers more refined aesthetics, better rear visibility and instant shelter when opened in wet or sunny conditions.

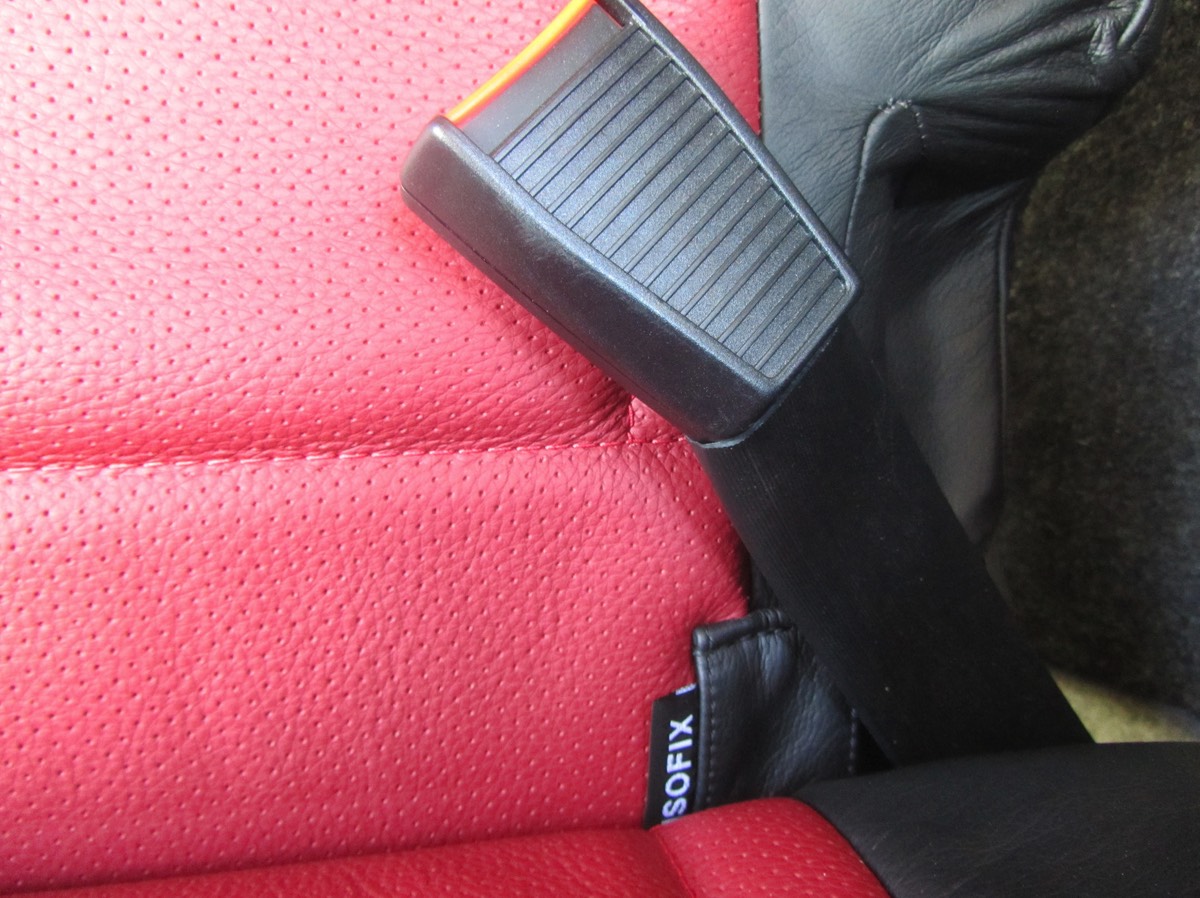

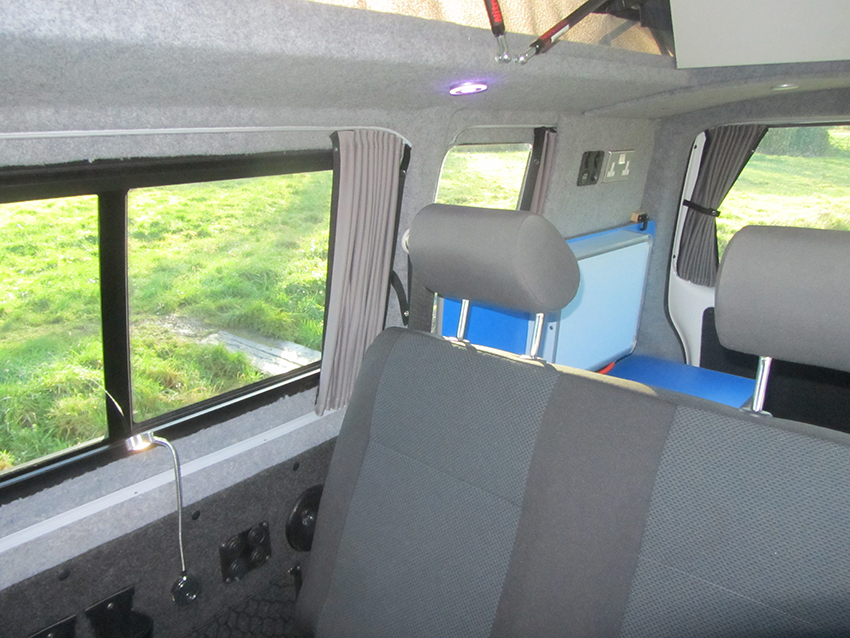

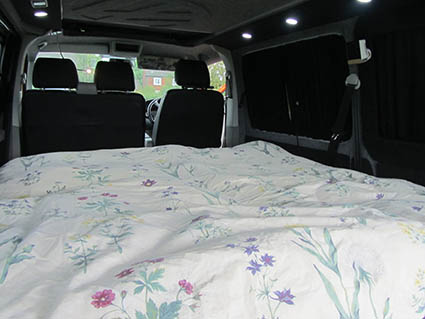

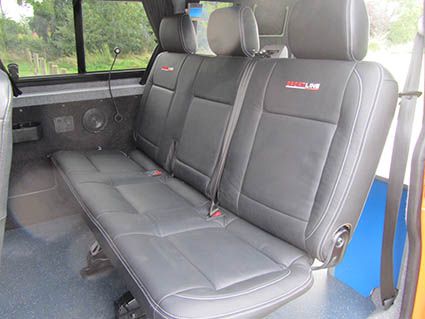

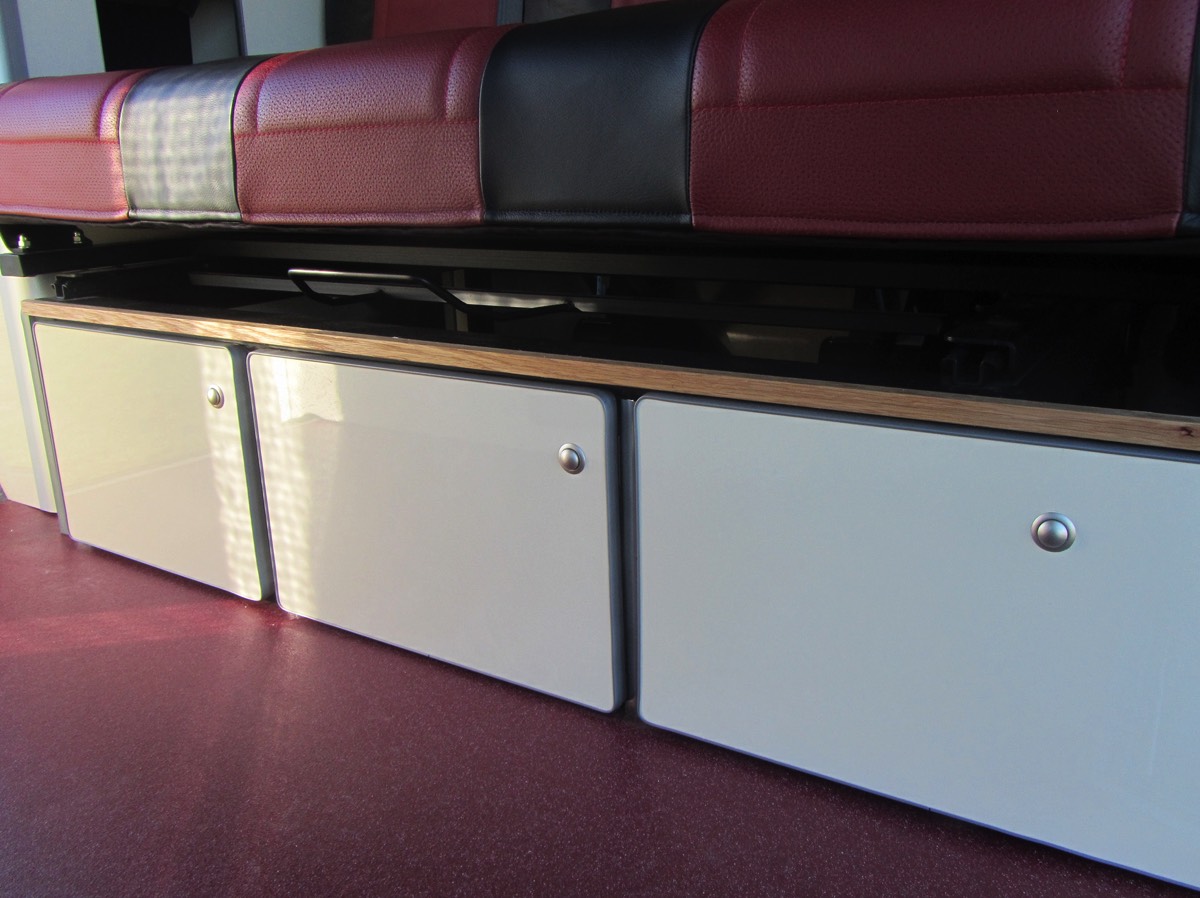

The vehicle has 5 seats for driving. The front seats are full leather and the passenger seat incorporates the VW swivel mechanism so can face rearward when stationary. The rear seats are manufactured by RIB one of the world’s best respected manufacturers and fold into completely* flat double bed 1.3m x 1.86m. The sleeping surface features foam specifically for a bed and different density seating foam for support when travelling, sleeping surfaces are Alcantara. The seats are finished in high quality leather, slide forward and include 2x isofix child seat fixings and adjustable headrests. The seat is crash tested and includes under chassis reinforcement.

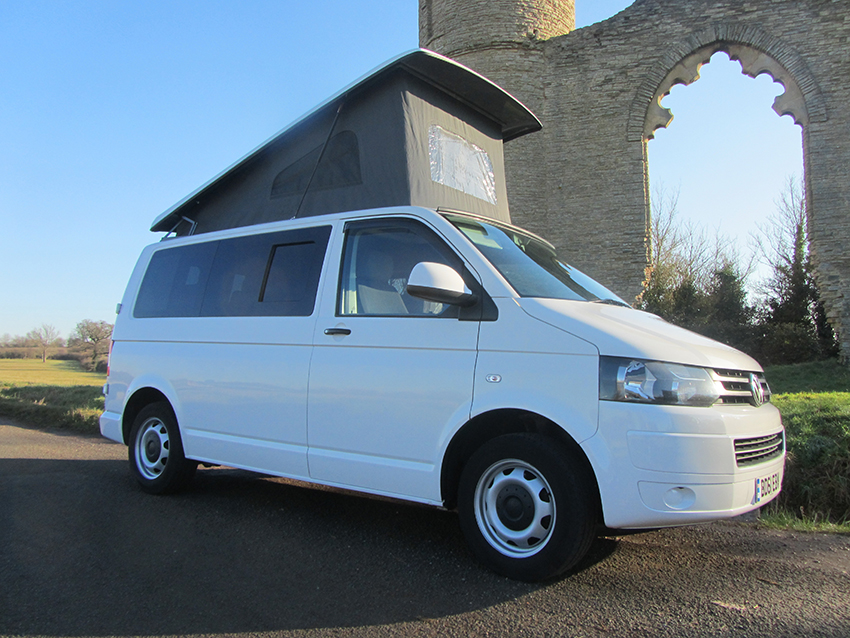

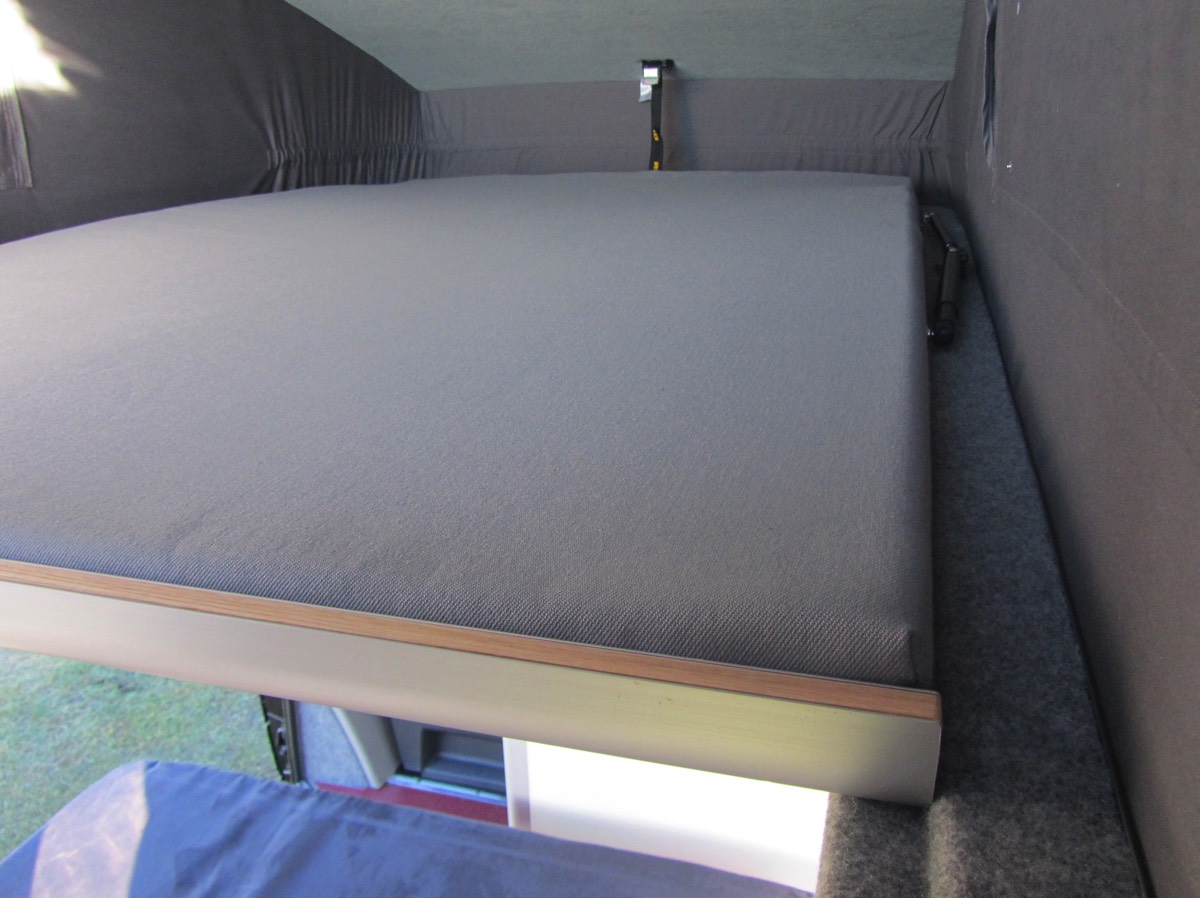

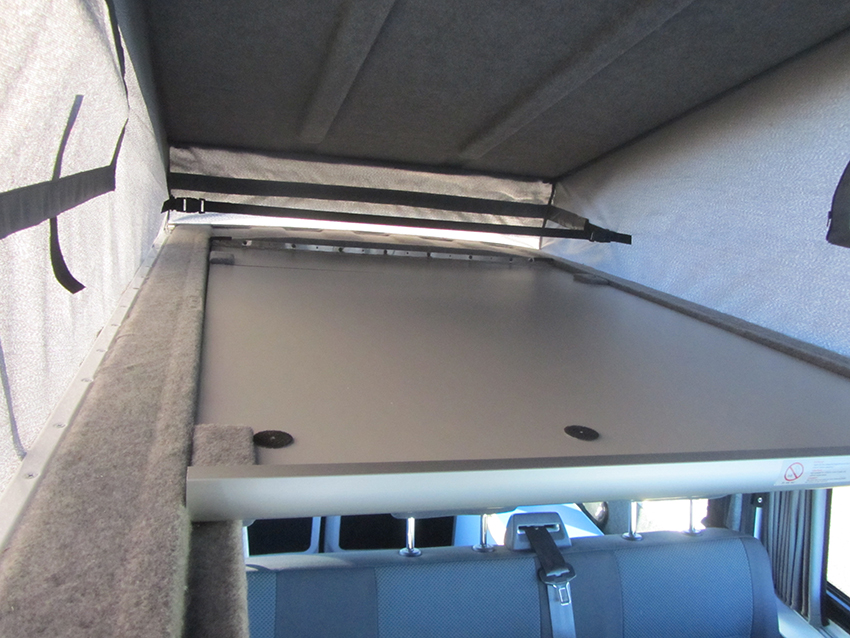

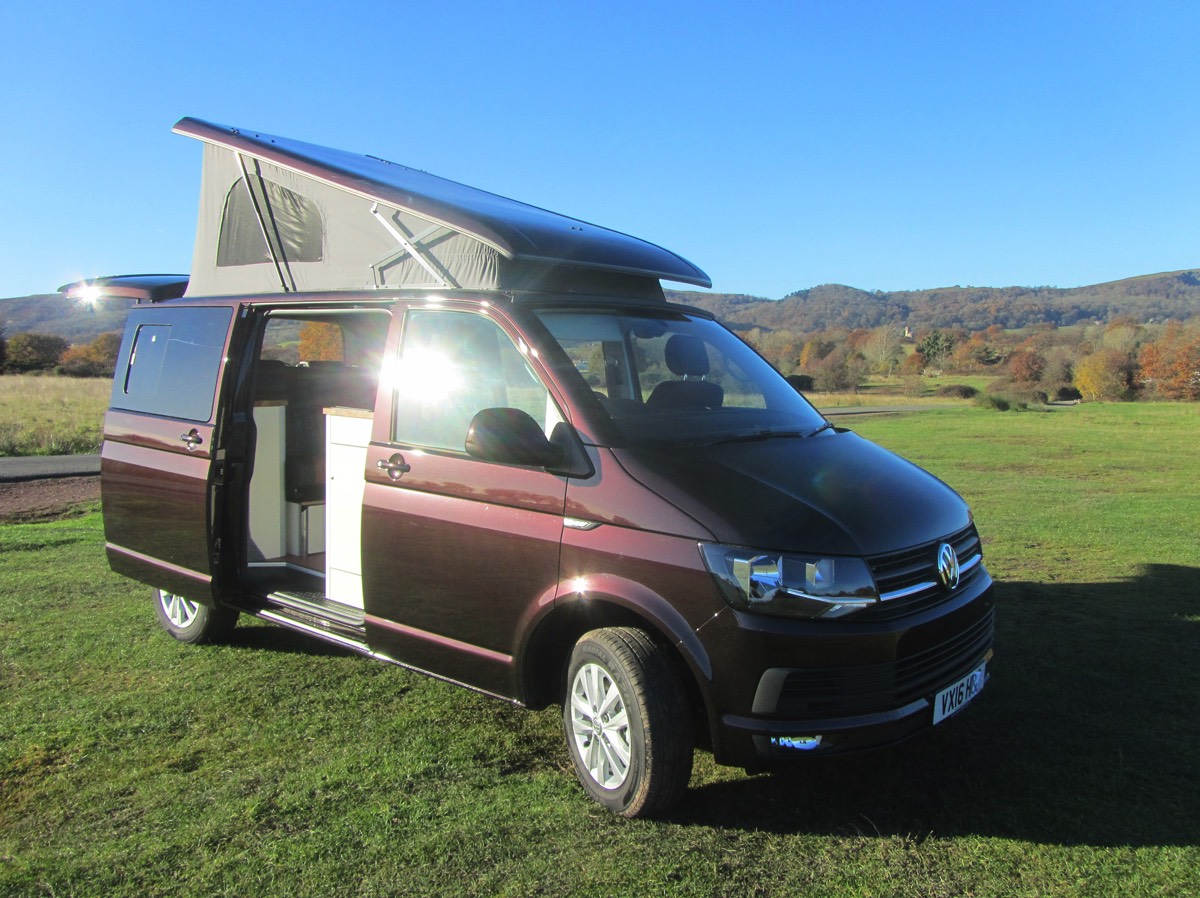

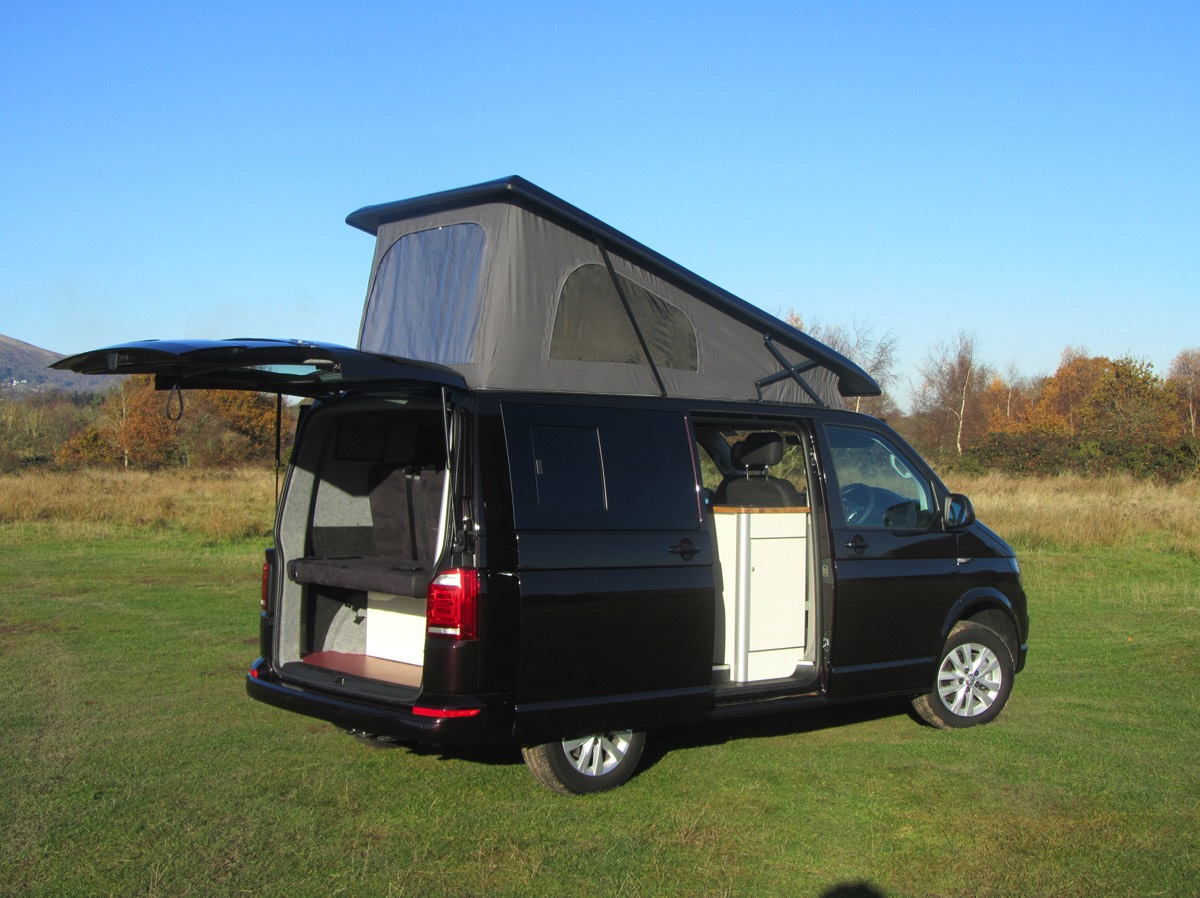

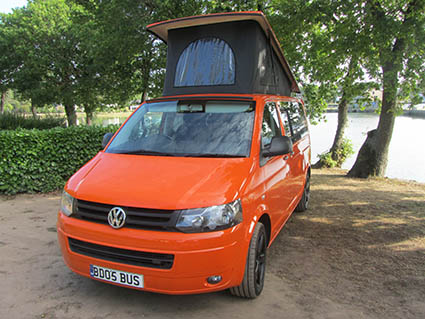

A high quality rear height TUV tested Reimo pop up roof, breathable cotton canvas, windows and fly netting. The roof bed features double hinge/gas strut system, Reimo mattress 1.8m x 1.1m and reading light.

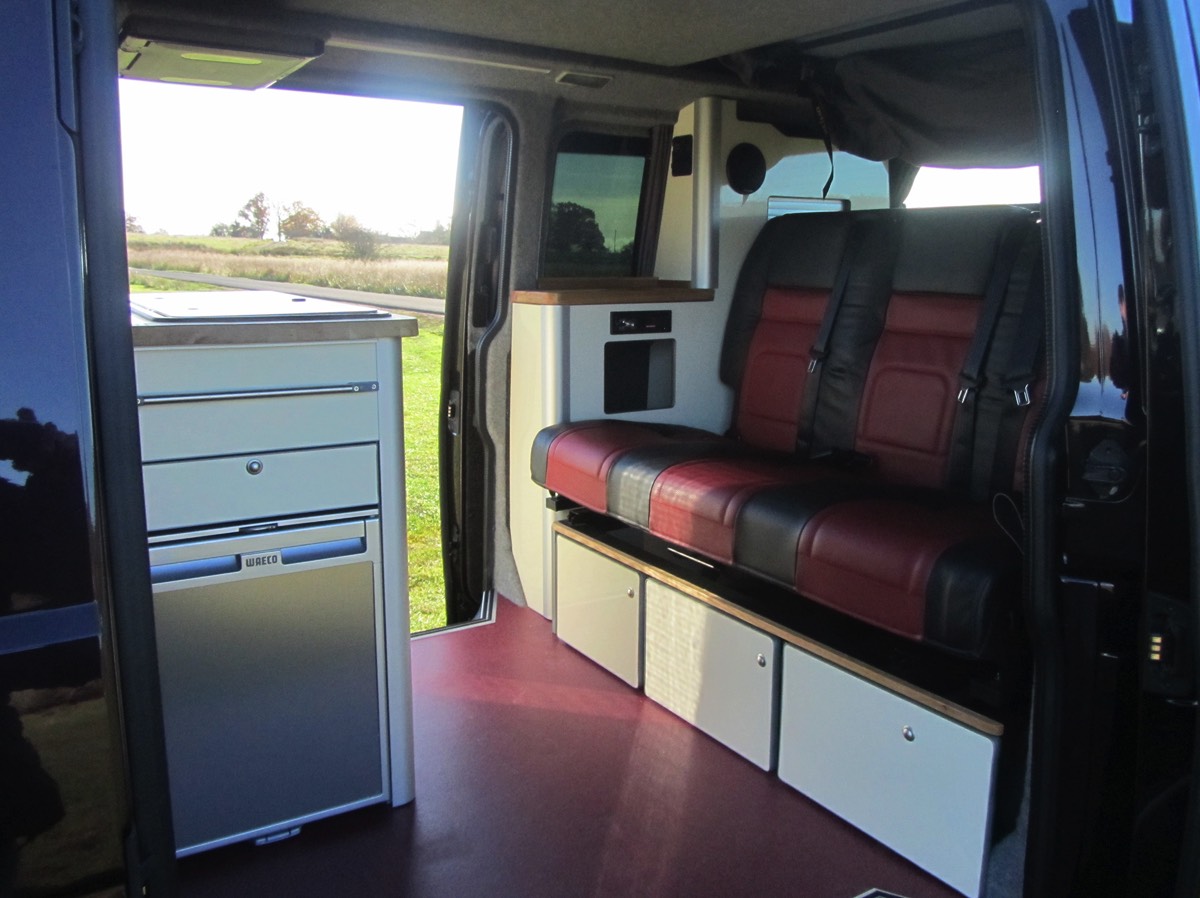

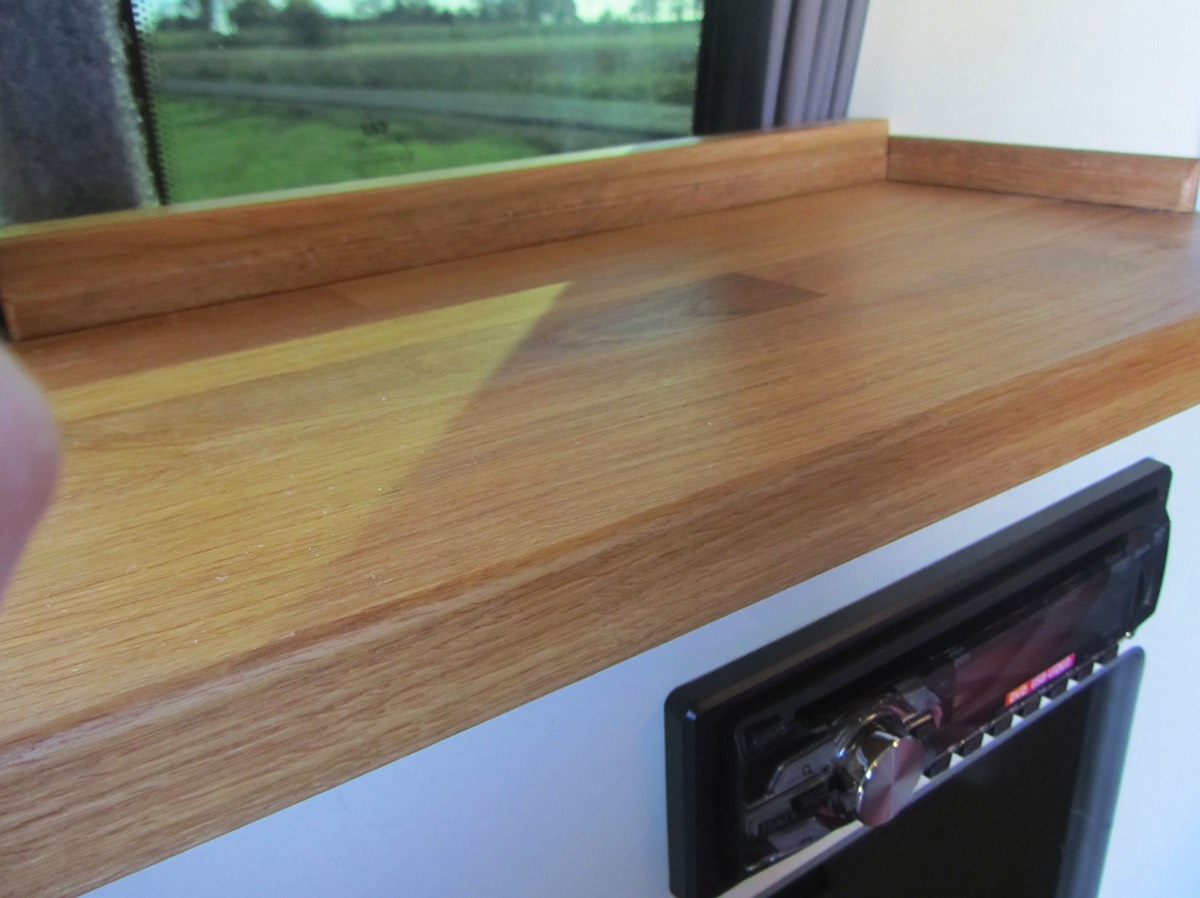

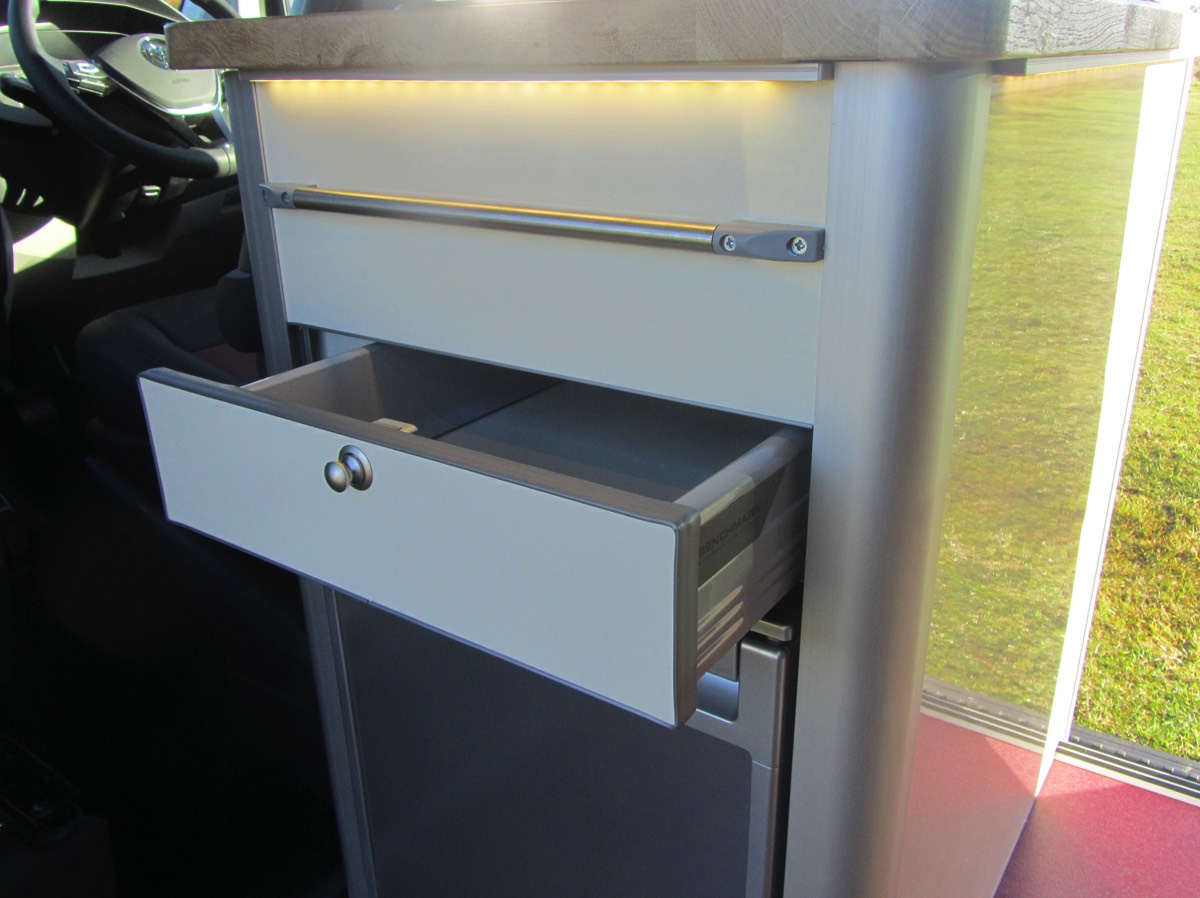

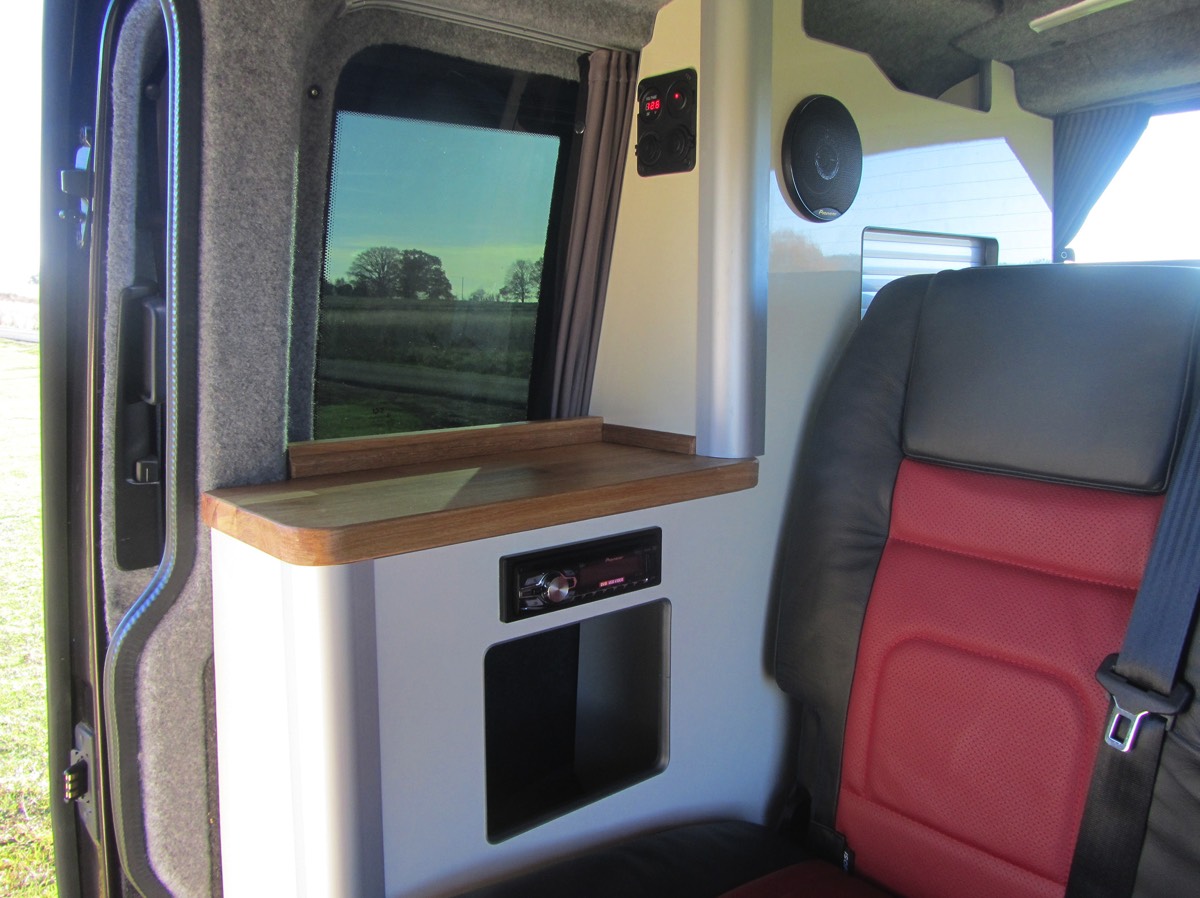

15mm lightweight Superva poplar plywood furniture in durable gloss white, aluminium corner trim, Solid oak work surfaces and trim, tambour door on rear unit, drawer on front unit.

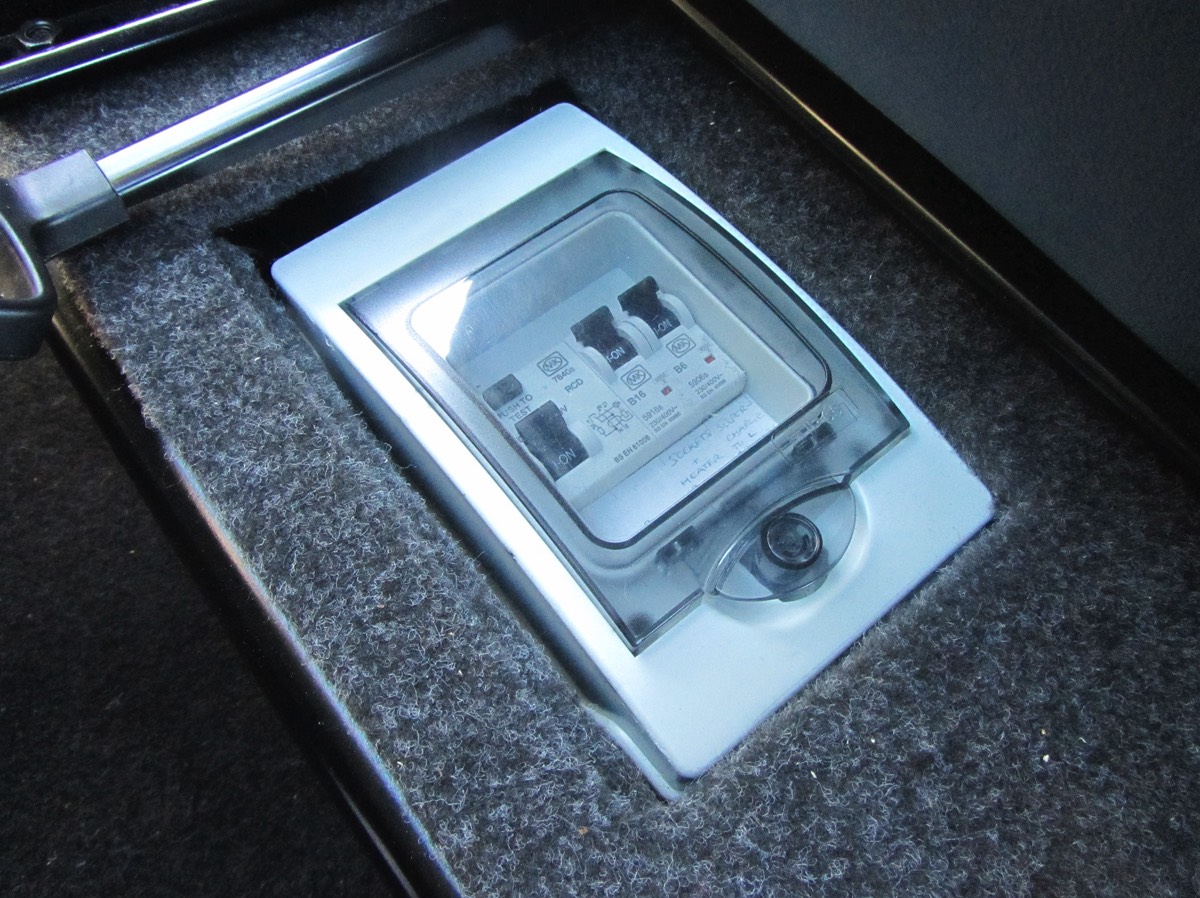

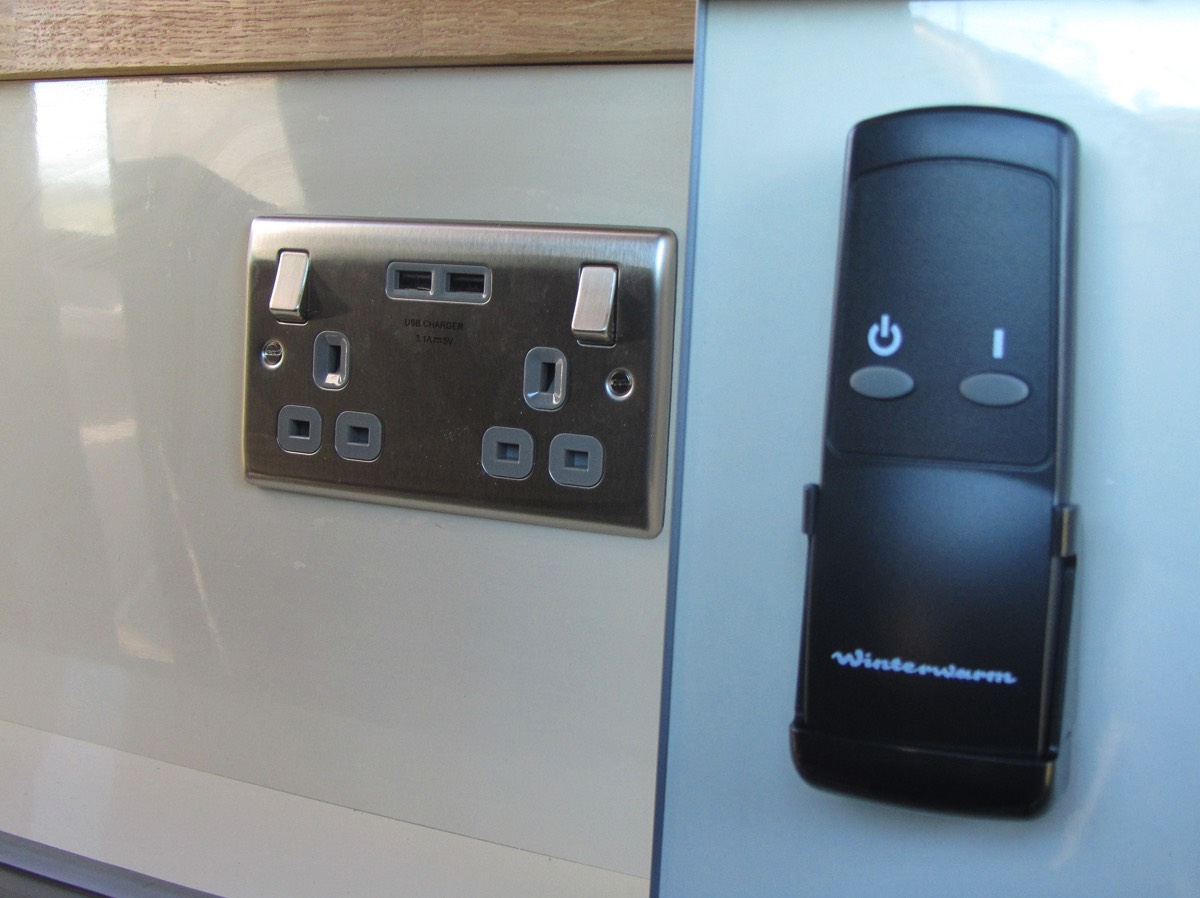

240v hook up, MK two way consumer unit, Super charge unit to charge leisure battery from mains, Winterwarm fan heater with remote control, 240v sockets with USB.

12v voltage sensing split charge system – to charge leisure battery when driving, 12v entry lights, accent down lights, switched voltage indicator, USB and 12v socket, Map light.

Altro anti-slip flooring

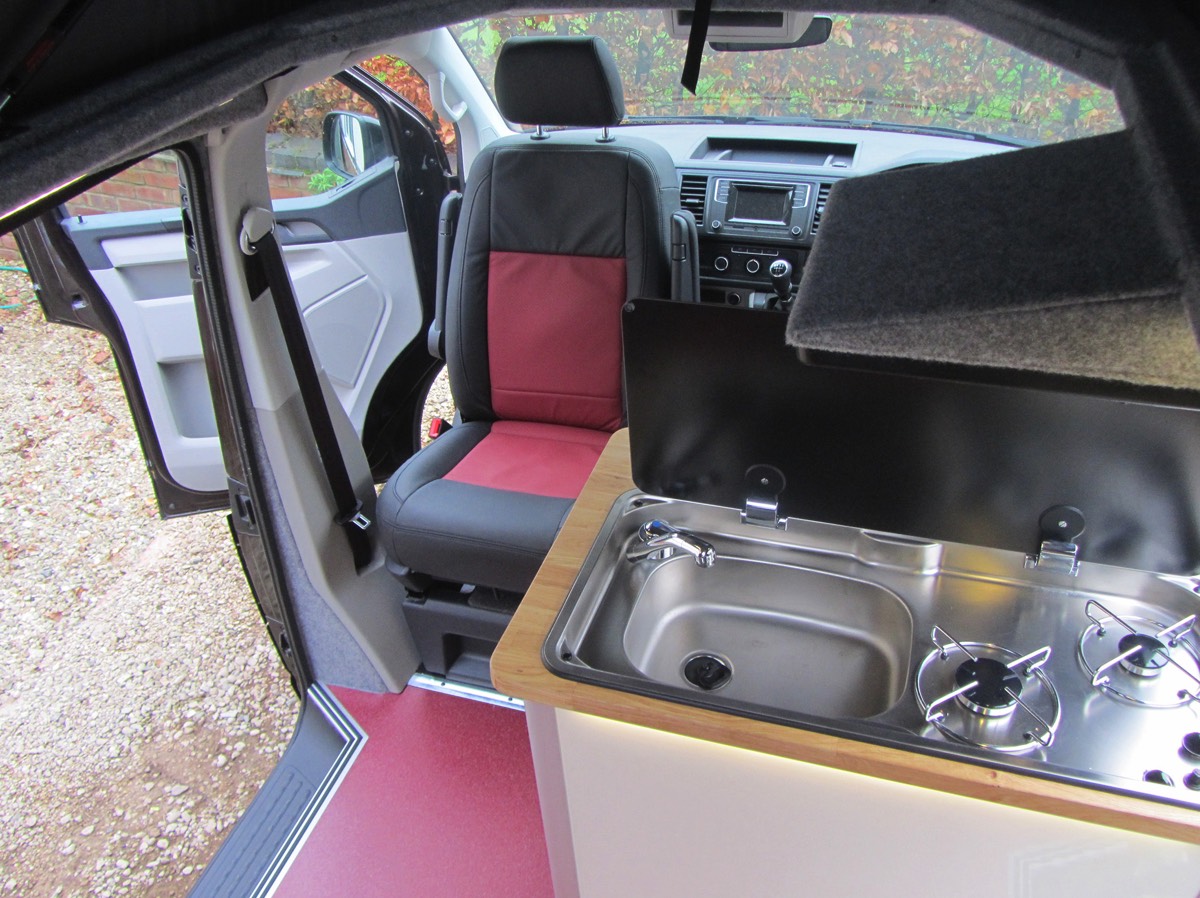

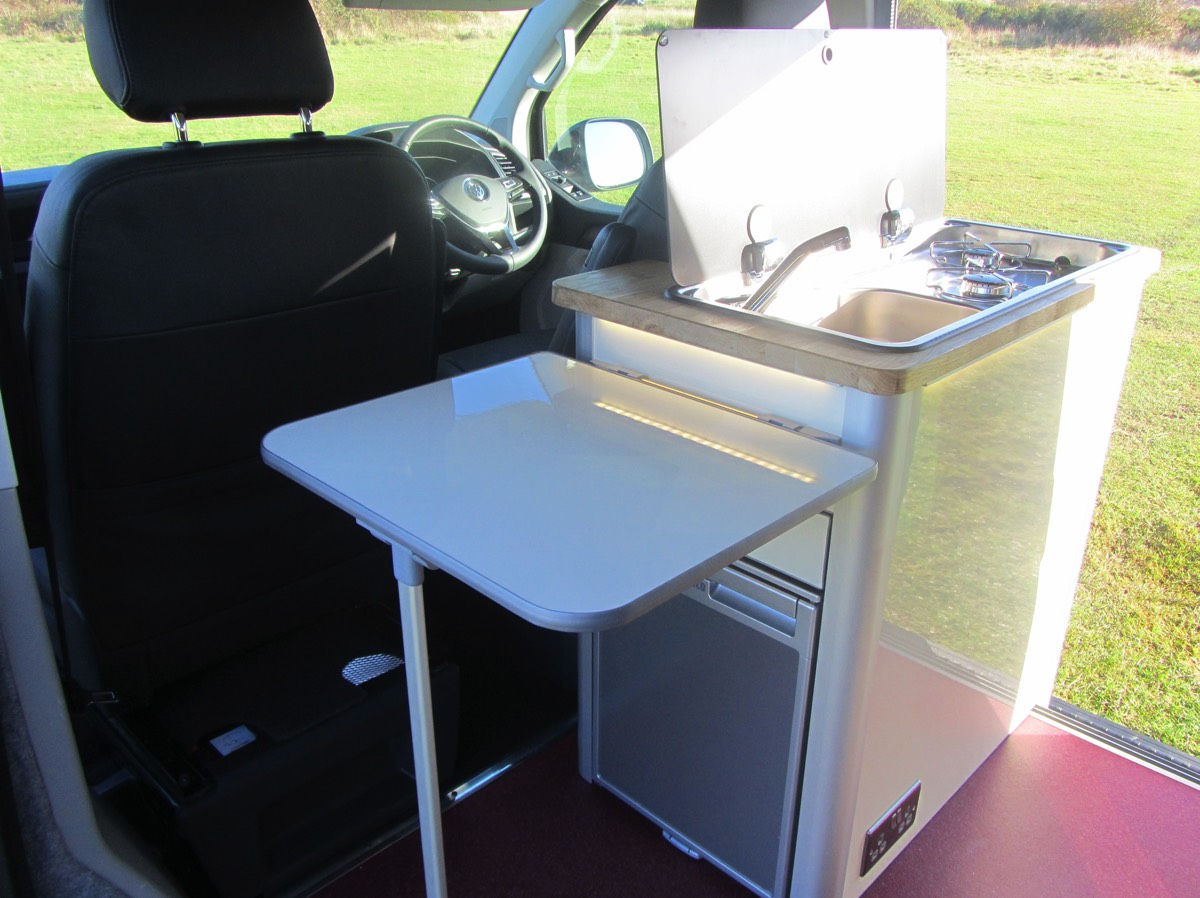

Can 2 burner hob with pizzo electric lighting and sink with cold water tap. Utilities cupboard with gas locker for 907 Camping Gaz cylinder and drop vent, Fresh and waste Water containers.

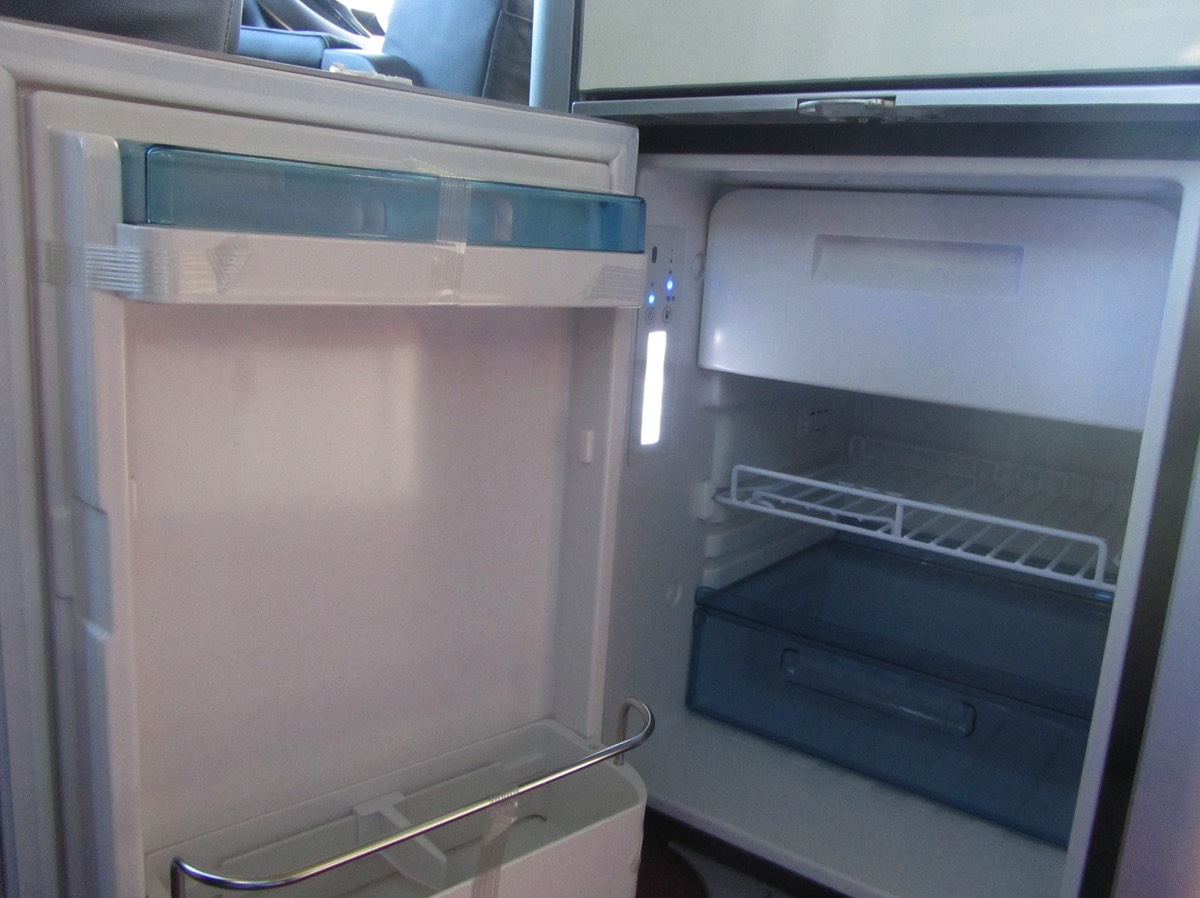

50l Weaco CRX upright compressor fridge with removable freezer section.

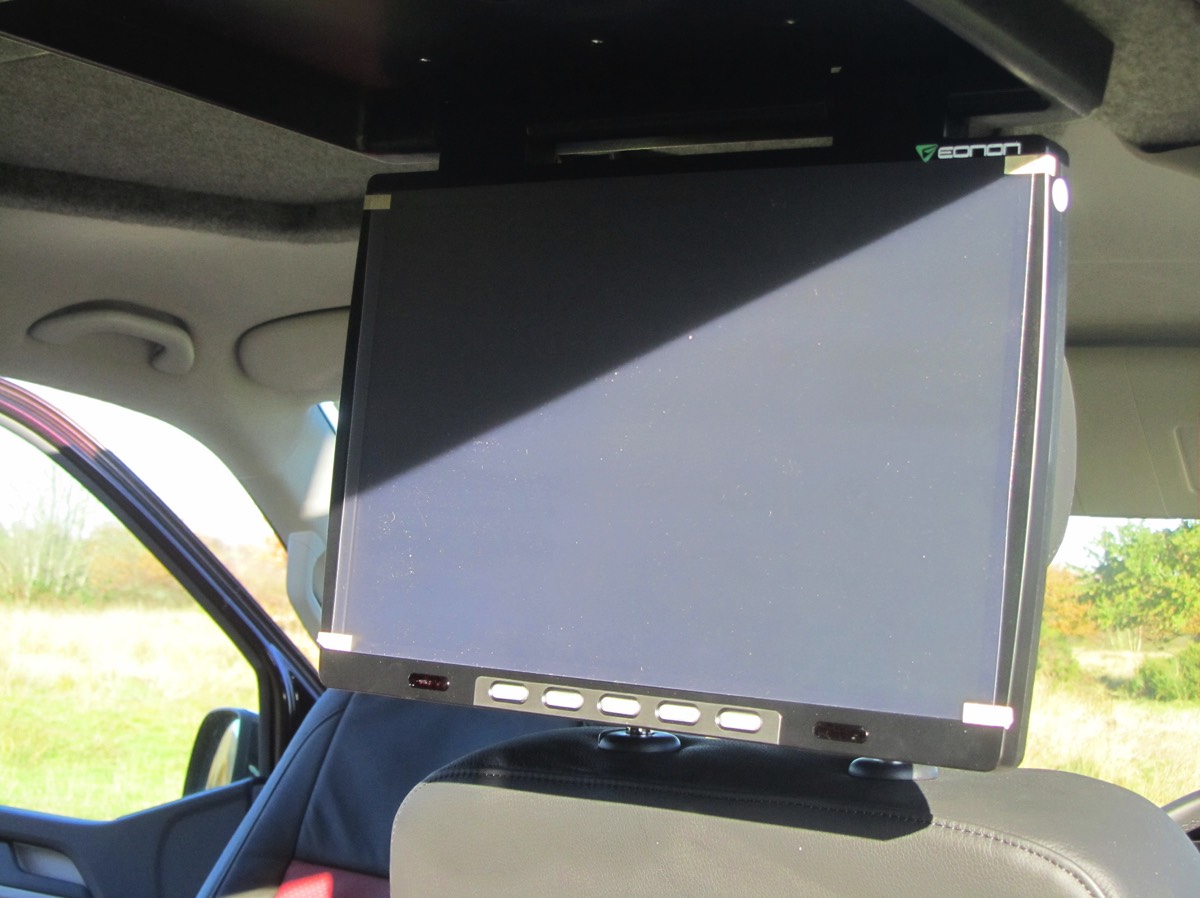

Pioneer Dvd/cd player and drop down screen, Pioneer triple cone independent rear speakers.

Van x blackout curtains.

• Candy white with Simora upholstery
• West Dubs front height pop top roof

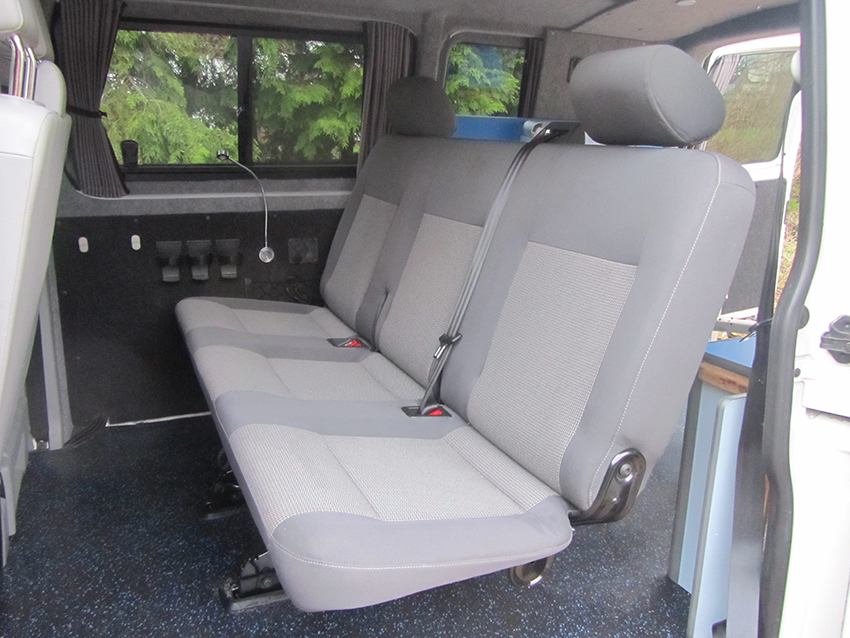

• VW combi 150cm triple second row seat
• Cabinets and table in powder Blue and Powder blue ‘superva’ lightweight poplar ply
• Folding Dometic double hob, which slides to enable cooking from inside or outside, Butane 4kg gas cylinder

• Double bed base 150cm x 200cm

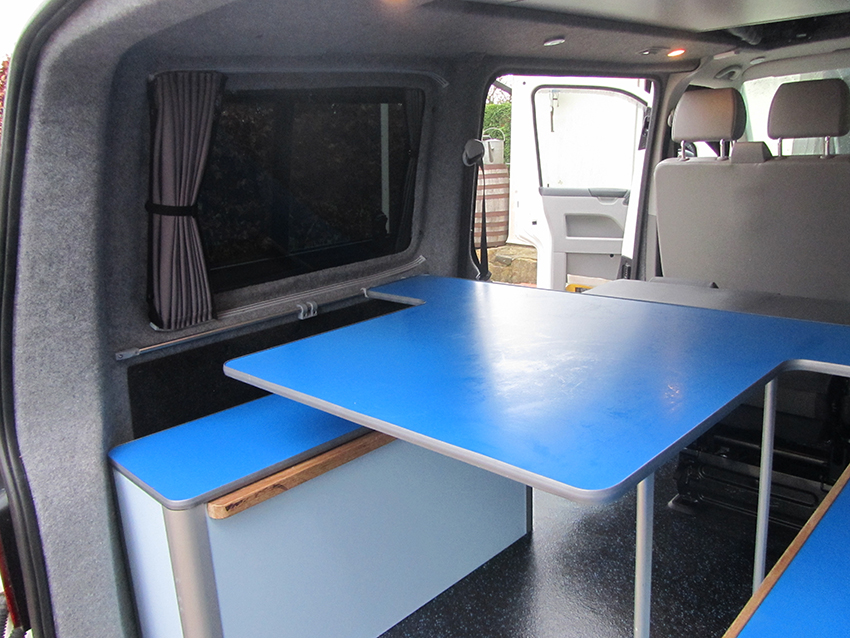

• Folding table which seats 5
• 240v hook up under bonnet, MK consumer unit and 240v double socket
• 12v system featuring voltage sensing split charge unit, leisure battery and fuse box under front passenger seat, 2 LED lighting circuits, 2 map lights, 12v sockets and USB’s to mid and rear of vehicle
• Roof bed 110cm x 170cm with twin sections
